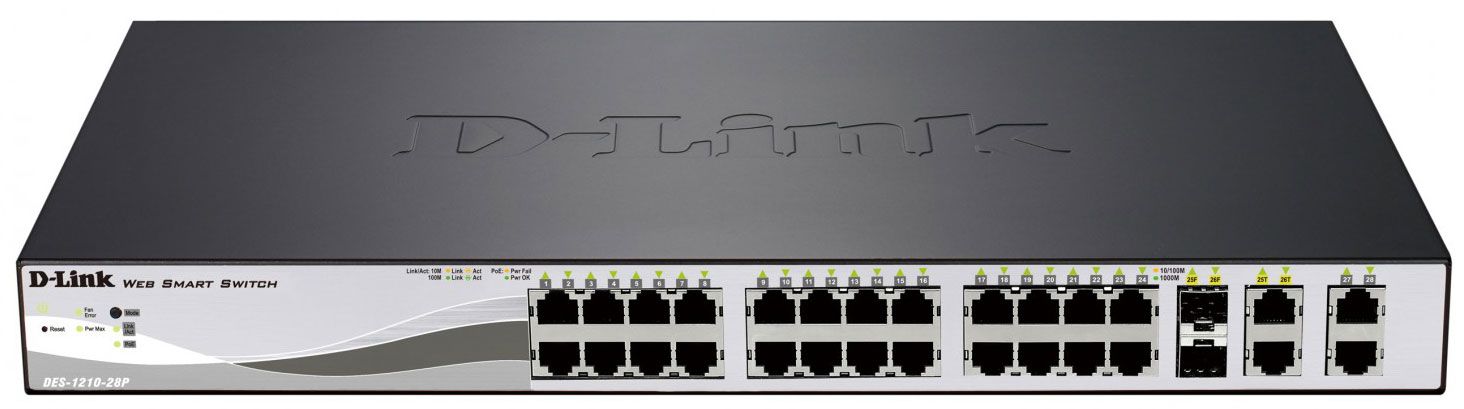

D-Link DES-1210-28P
Modelio aprašymas anglų kalba:
The DES-1210 Series is the latest generation of D-Link Web Smart switches. Equipped with 24 or 48 10/100 Mbps ports, 2 10/100/1000BASE-T ports, and 2 combo 10/100/1000BASE-T/SFP ports, the DES-1210 Series integrates advanced management and security functions for enhanced performance and scalability. The DES-1210-08P/28P are built with 10/100 Mbps ports that are PoE-enabled, offering ease-of-use and green features such as Time-based PoE, which can shut off PoE power at a predetermined time. The Smart Fan feature on the DES-1210-28P allows the built-in fans to automatically turn on at a certain temperature, providing continuous, reliable, and eco-friendly operation of the switch. Compliant with 802.3af and 802.3at, the DES-1210-28P is capable of feeding power of up to 30 watts to devices. Management options include SNMP, Web Management, SmartConsole Utility, and Compact Command Line for easy deployment. The DES-1210 Series provides a complete and affordable solution that is ideal for small and medium businesses and the enterprise edge.
Характеристики:
Features
- 24x 100Base-TX Fast Ethernet ports
- 2x 1000Base-T Gigabit ports
- 2x 1000Base-T/SFP combo ports
- 19 rack size
- Auto MDI/MDIX
- 802.3x Flow control
Performance
- Switching capacity: 12.8 Gbps.
- Max. forwarding rate: 9.5 Mpps.
- MAC table: 8K entries
- Packet buffer: 512 KB
Network
- 802.3ad Link Aggregation (max. 8 groups, 8 ports per group)
- Bandwidth control (port-based)
- IGMP v1/v2 snooping
- Port mirroring
Resiliency
- 802.1D Spanning Tree
- 802.1w Rapid Spanning Tree
- Loopback detection (LBD)
- Cable diagnostics
VLAN
- 802.1q VLAN
- Auto Voice VLAN (10 user-defined OUI, 8 default OUI)
- AutoSurveillance VLAN (5 user-defined OUI)
- Static VLAN (256 groups)
- VLAN VID configurable (1-4096)
Quality of Service (QoS)
- 802.1p QoS
- 4 queues per port
- Strict priority or Weighted Round Robin (WRR)
- DSCP CoS
Security
- Static MAC (128 entries)
- Port Security (max. 64 MAC addrsses per port)
- Broadcast/Multicast/Unknown Unicast Storm Control
- ACL (max 50 profiles)
Management
- Web-based GUI
- SmartConsole Utility
- Password control
- Configuration backup/restore
- SNMP v1/v2
- System log
- Firmware upgradeable
