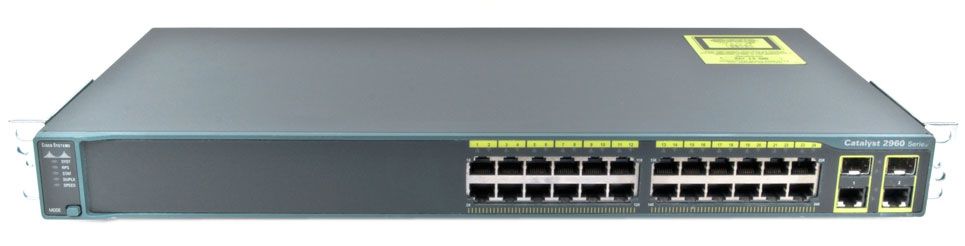

Cisco C2960 plus
Prekės aprašymas anglų kalba:
The Cisco Catalyst 2960-Plus series switches are fixed-configuration Fast Ethernet switches that provide enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications. They enable reliable and secure operations with lower total cost of ownership through a range of Cisco IOS software features, including Cisco Catalyst SmartOperations.
Specifications
General
- Device Type: Switch - 24 ports - managed
- Enclosure Type: Rack-mountable - 1U
- Subtype: Fast Ethernet
- Ports: 16 x 10/100 + 8 x 10/100 (PoE) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE): PoE
- PoE Budget: 123 W
- Performance: Switching capacity : 16 Gbps ¦ Forwarding performance (64-byte packet size) : 6.5 Mpps
- Capacity: Active VLANs : 64
- Jumbo Frame Support: 9018
- Remote Management Protocol: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP
- Authentication Method: RADIUS, TACACS+
- Features: Layer 2 switching, auto-sensing per device, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
- RAM: 128 MB
- Flash Memory: 64 MB
- Status Indicators: Port status, link activity, port transmission speed, port duplex mode, power, system
Expansion / Connectivity
- Interfaces: 8 x 100Base-TX - RJ-45 - PoE - 15.4 W ¦ 16 x 100Base-TX - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC)
Power
- Power Device: Internal power supply
- Voltage Required: AC 120/230 V ( 50/60 Hz )
- Features: Redundant Power System (RPS) connector
Miscellaneous
- Rack Mounting Kit: Optional
- Compliant Standards: FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24
