Prekės informacija

Bendrosios charakteristikos

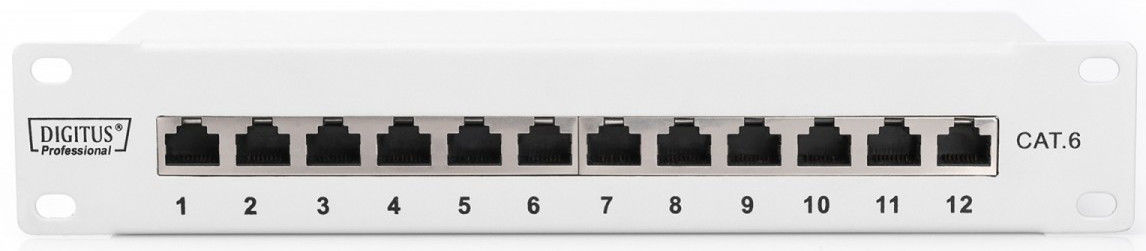

Prekės tipas
Komutacinės panelės

Prekės ženklas
Digitus
Ilgis
25 cm
Plotis
11.2 cm
Savybės
Ekranuotas. 10“
Spalva
Pilka
Vienetai pakuotėje
1

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Prekės aprašymas anglų kalba:

Application range: Up to 250 MHz, 1GBase-T Standards: ISO / IEC 11801 2nd edition, EN 50173-1, EIA / TIA 568-C General properties: Intended for mounting in 254 mm (10 ") cabinets RJ45, 8P8C sockets Cable installation via LSA strips with color code according to EIA / TIA 568 A & B Fixing cables with a cable tie Central ground connection 360 ° shielding contact Mechanical properties: Body material: 1.5 mm Galvanized, cold-rolled steel acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110 Material of the RJ45 socket: ABS UL 94V-0 RJ45 socket contact: nickel plated phosphor bronze, gold plated contact 0,5 Shielding RJ-45: nickel plated LSA knife clamp: Krone LSA +, UL 94V-2, zinc phosphated Grounding wire: Not included in the scope of delivery Printed circuit board: FR4, UL 94V-0 Physical properties: Plug strength: 30 N max. (IEC 60603-7-5) Tensile load: 7.7 kg between the socket and the plug Working temperature: -20 ° C to + 70 ° C (ISO / IEC 11801, EN 50173-1, ANSI / TIA / EIA 568 C) Plug socket cycle:> 750 in accordance with ISO / IEC 11801, IEC 60603-7-5 Terminal:> 200 in accordance with ISO / IEC 11801, IEC 60603-7-5 Core size: 2226 AWG full and twisted pair Insulation resistance:> 500 megohms
