Name: Jungiklis Rademacher Troll Comfort DuoFern 5665-AL, 230 V
Brand: Rademacher
Price: 145.9 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Jungiklis

Prekės ženklas

Rademacher

Kolekcija

Modelis

Troll Comfort DuoFern 5665-AL

Plotis

50 mm

Gylis

12 mm

Aukštis

50 mm

Palaikomos atminties kortelės

Jungtys

Sąsaja

Nėra

Montavimas

Įstatomas į sieną

Įtampa

230 V

Valdymas per išmanųjį įrenginį

Taip

Naktinis matymas

Apsauga nuo

Pragręžimo

Suderinami gamintojai

Visi

Garantija

24 mėn

Papildoma informacija

Didžiausia perjungimo apkrova: varžinė apkrova 8 A, indukcinė apkrova 4 A

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

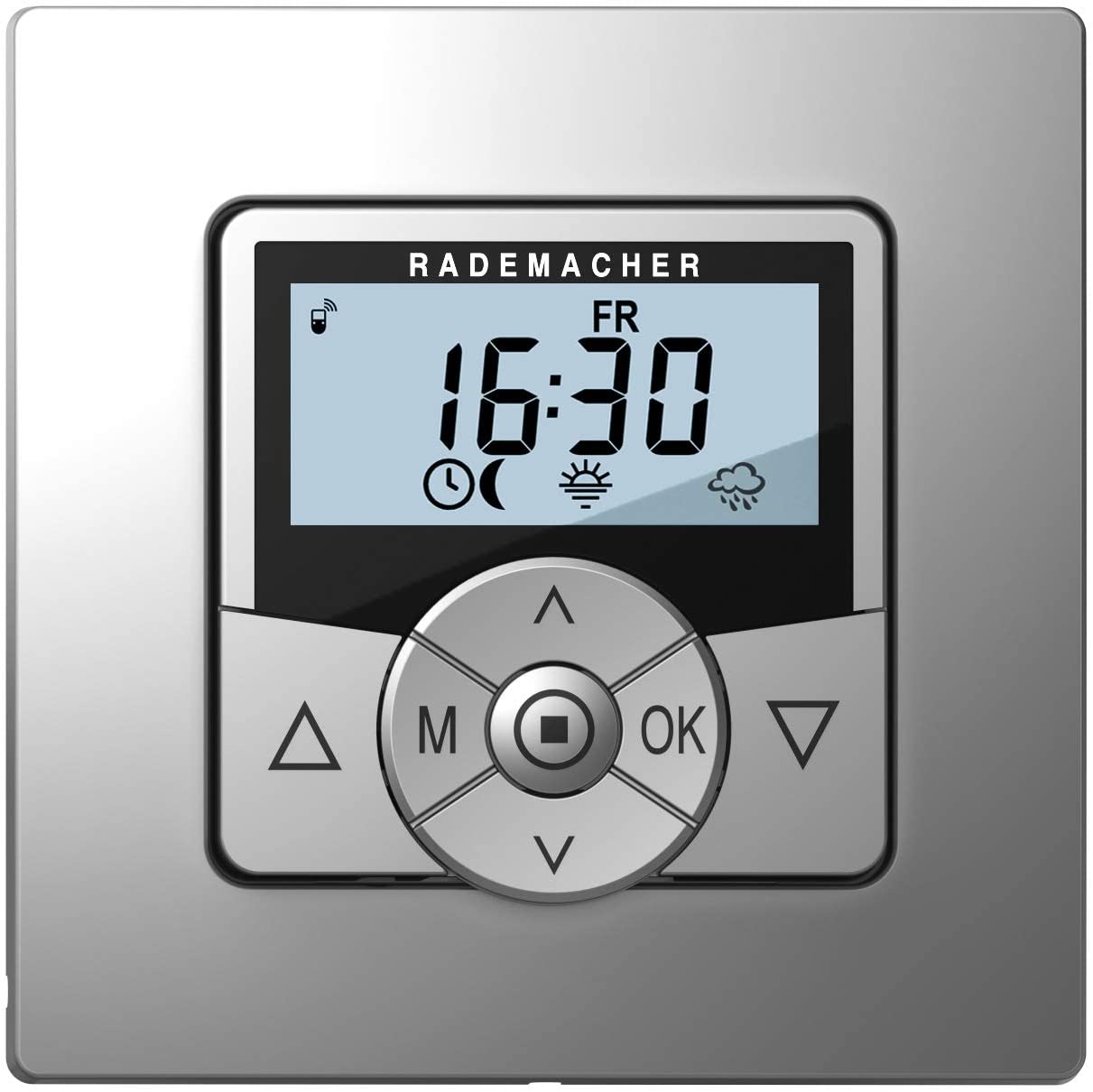

Troll Comfort DuoFern 5665-AL, time switch

The Rademacher Troll Comfort DuoFern 5665-AL is a radio-capable timer for controlling roller shutters. Connected to an electric roller shutter drive, the Troll Comfort DuoFern is used to control and automate your roller shutters. Thanks to the integrated radio interface, connected roller shutters can be operated remotely at the same time. In addition to extensive automatic functions, such as a daily/weekly/astro or random program, the Troll Comfort DuoFern also offers a simple installation wizard. This guides you through the basic settings during initial commissioning and enables switching times to be set up quickly. The changeover of the roller shutter time switch to summer and winter time is fully automatic. In addition, the wireless timer has an integrated blockage detection for mechanical tubular motors.

Type: Timer

Color white

EAN code: 4031909018939

Manufacturer part number: 36500582

Smart home: DuoFern

Device Properties: Annotation | maximum supported DuoFern devices: 20

Device Properties: Display/Display | Large illuminated display

Device Properties: Device Type | home automation

Device Properties: Device Type | control panel

Device Properties: Assembly | Flush-mounted box (32 mm installation depth)

Device Properties: Power Supply | 230V / 50Hz, 60Hz

Area of application: indoors

Range: Max receive (buildings) | 30 m

Range: Max Send (Building) | 30 m

Degree of protection: IP30

Temperature range: operation | 0 - 40 °C

Connection type: cable

Radio: Frequency | 434.5MHz

Note: Protection class: II

Feature: daily/weekly/astro program, random function

Additional information: maximum switching load: 8 A resistive load, 4 A inductive load

Accessories: available | Cover frame, installation housing, spacer, instruction manual

Dimensions: Width: 50mm x Height: 12mm x Depth/Length: 50mm
