Name: Jungiklis Rademacher 9471-1, 100 m, 230 V
Brand: Rademacher
Price: 79.9 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Jungiklis

Prekės ženklas

Rademacher

Kolekcija

Modelis

9471-1

Plotis

48 mm

Gylis

20 mm

Aukštis

48 mm

Jungtys

Sąsaja

Nėra

Maksimalus veikimo nuotolis

100 m

Montavimas

Įstatomas į sieną

Įtampa

230 V

Valdymas per išmanųjį įrenginį

Taip

Suderinami gamintojai

Visi

Garantija

24 mėn

Papildoma informacija

9471-1 radijo bangomis valdomas paslėptų roletų operatorius.

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

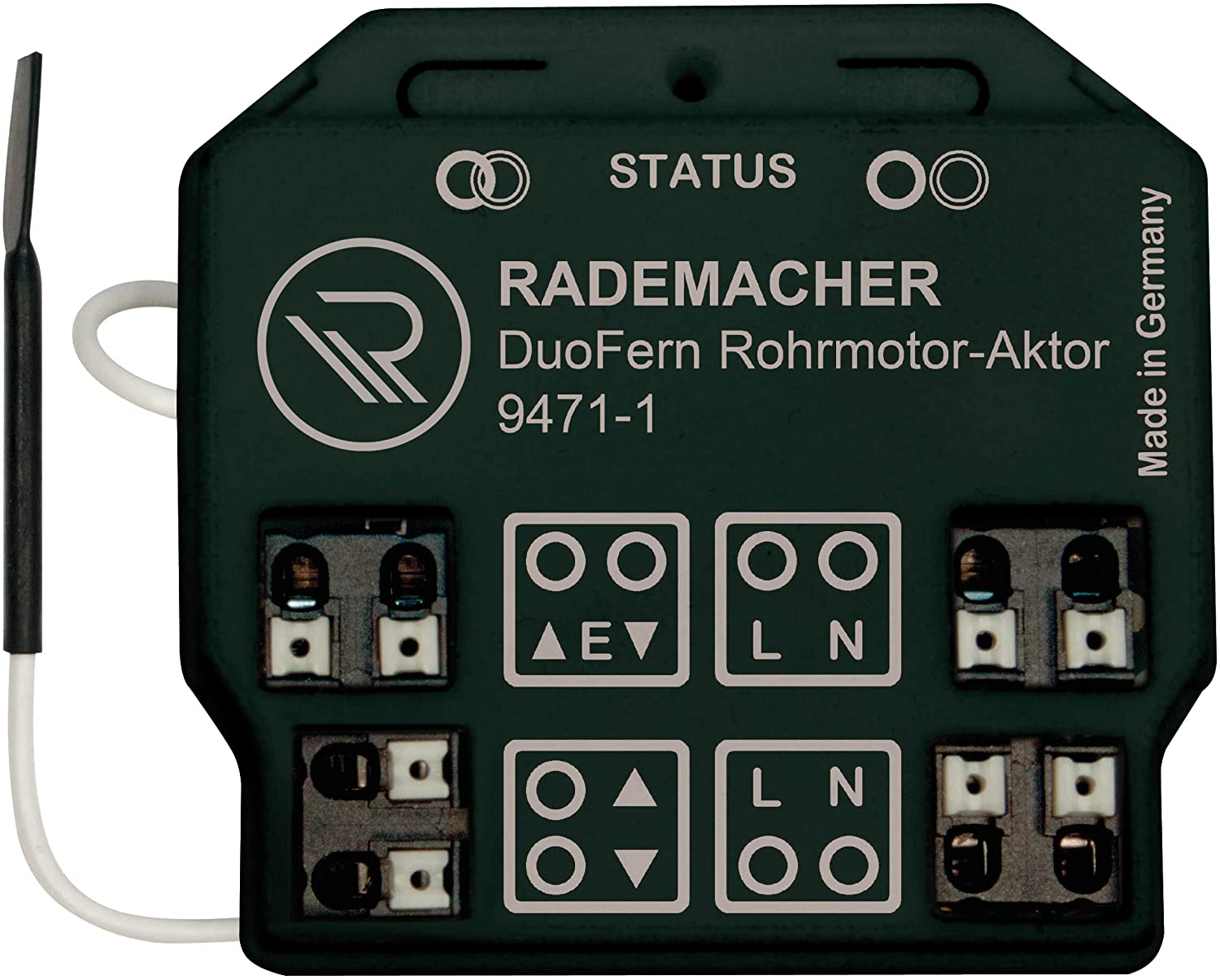

Tubular motor actuator 9471-1

With the radio-capable flush-mounted tubular motor actuator 9471-1 for roller shutter motors, roller shutters can be easily controlled by radio. With the actuator, existing roller shutter motors can be expanded and made wireless. It can be installed quickly and easily in a commercially available flush-mounted or electronics box. The flush-mounted radio actuator has the option of connecting roller shutter switches or buttons for manual operation, but can also be integrated into the DuoFern SmartHome. If the Smart Home actuator is integrated, practical automatic functions are available.

Type: actuator

EAN code: 4031909020598

Smart home: DuoFern

Note: maximum switching capacity: 550 W, maximum connection cross-section: 1.5mm2

Device Properties: Device Type | home automation

Device Properties: Device Type | expansion module

Device Properties: Assembly | flush-mounted box

Device Properties: Power Supply | 230V / 50Hz

Range: Max. receive (free field) | 100 meters

Range: Max receive (buildings) | 30 m

Range: Max. transmission (free field) | 100 meters

Range: Max Send (Building) | 30 m

Electricity: Consumption | 0.5W

Temperature range: operation | -20 - 55?

Connection type: cable

Radio: Frequency | 434.5MHz

Accessories: available | operation manual

Dimensions: Width: 48mm x Height: 20mm x Depth/Length: 48mm
