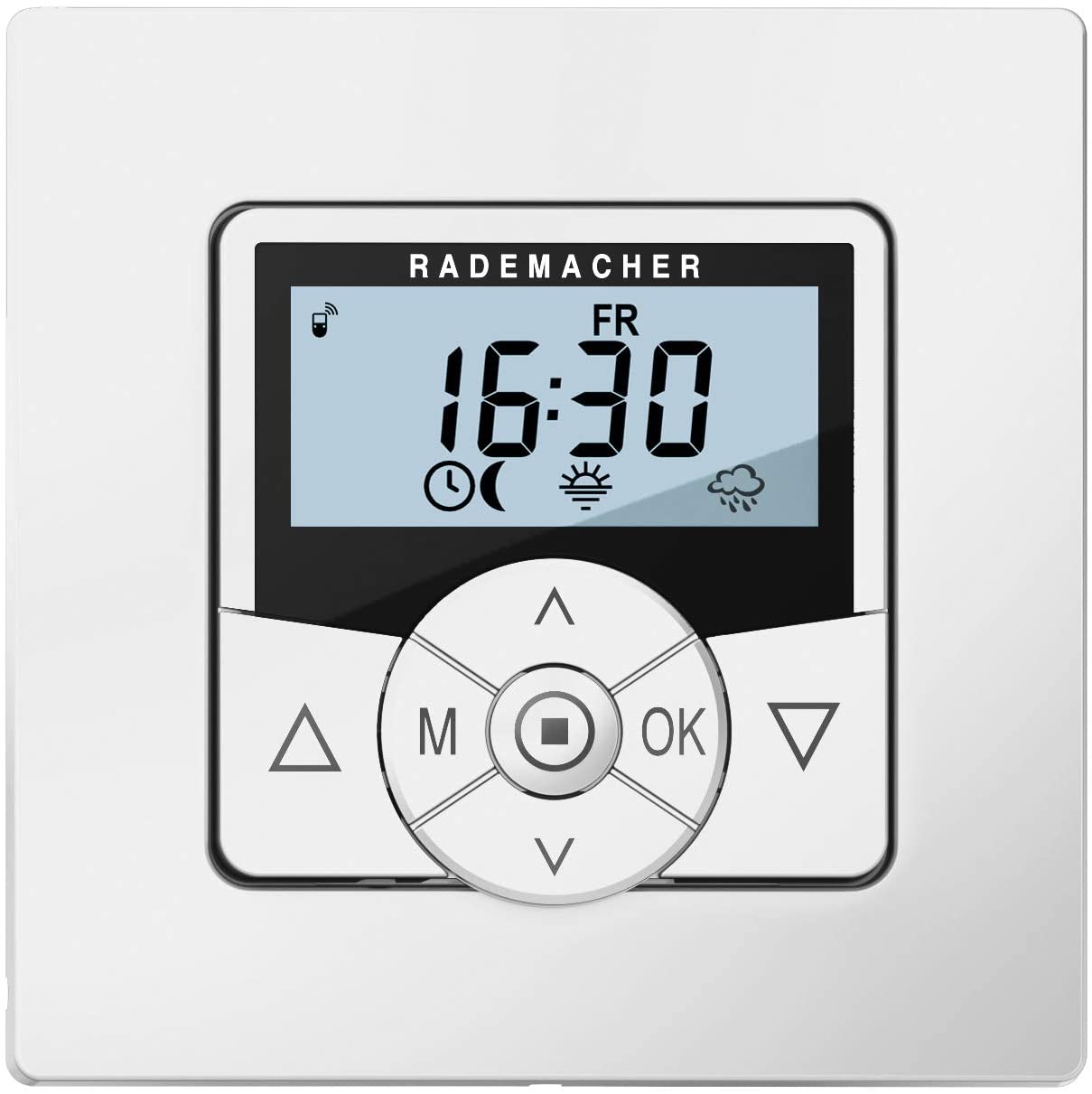

Comfort DuoFern 5665-UW, time switch
The Rademacher Troll Comfort DuoFern is the radio-capable time switch for roller shutters. Connected to an electric roller shutter drive, the Troll Comfort DuoFern is used to control and automate the roller shutters. Thanks to the integrated radio interface, the roller shutters can also be operated remotely. This radio timer is a real eye-catcher with its modern design, a large illuminated display, piano lacquer finish and intuitive 5-way navigation! In addition to extensive automatic functions, such as a daily/weekly/astro or random program, the Troll Comfort DuoFern also offers a simple installation wizard. This guides you through the basic settings during initial commissioning and enables switching times to be set up quickly. The changeover of the roller shutter time switch to summer and winter time is fully automatic. In addition, the wireless timer has an integrated blocking detection for mechanical tubular motors - this protects frozen roller shutters from damage. With the sun and twilight sensor available as an accessory, sun and twilight control is also possible. Thanks to the design in accordance with DIN 49075, the time switch can be integrated into all common switch ranges via intermediate frames.
Type: Timer
Color white
EAN code: 4031909018922
Manufacturer part number: 36500572
Smart home: DuoFern
Device Properties: Annotation | Switching capacity: Max. 8 A resistive load, Max. 4 A inductive load
Device Properties: Device Type | home automation
Device Properties: Device Type | control unit
Device Properties: Assembly | Installation depth 32 mm
Device Properties: Power Supply | 230 V, 50/60 Hz, stand-by consumption:
Operation: function keys
Additional information: Protection class: II; Degree of protection: IP30; Transmission frequency: 434.5MHz; Transmission power: Max. 10 mW; External inputs: 2; Connection cross-section: Max. 1.5 mm2; Power reserve: 8 hours (permanent data storage); Range: approx. 100 m outdoors, approx. 30 m indoors (depending on the building structure); DuoFern devices: Max. 20; Operating temperature: 0 - 40 °C
Accessories: available | Cover frame, installation housing, spacer, instruction manual
Dimensions: Width: 50mm x Height: 12mm x Depth/Length: 50mm
