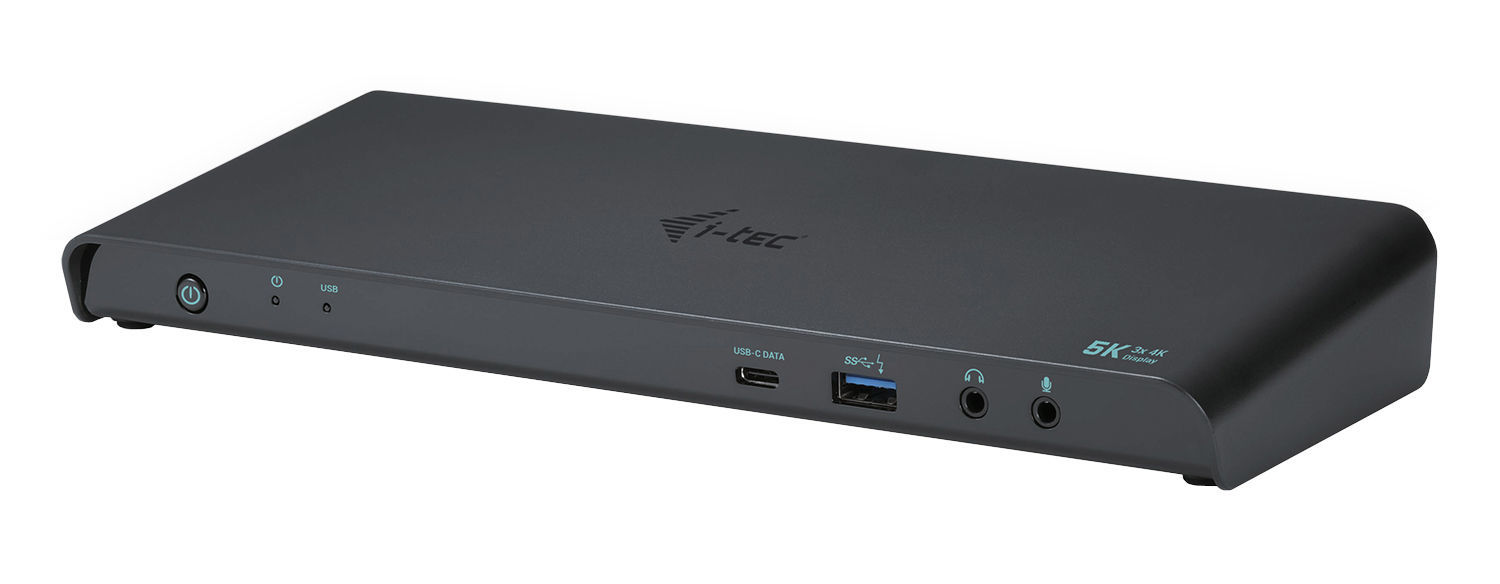

Jungčių stotelė i-Tec Triple 4K PD, juoda

i-tec USB-C / USB-A 3.0 3x 4K Docking Station + Power Adapter 135W

Excellent performance, versatile connection capabilities, and the protection of your investment by supporting both current and future technologies. One of the most powerful docking stations on the market that can convert an average-performing notebook into a top-class workstation with 4K or even up to 5K resolution support. Highly flexible connectivity options can be used for your current technology while opening the way for the future: this docking station can be connected to USB 3.0 ports as well as USB-C and Thunderbolt 3.

Increase efficiency by simply connecting the docking station to your laptop with a single cable. You do not only get access to power (applicable via USB-C or Thunderbolt 3 interfaces; not USB 3.0: it is not technically possible to charge a notebook with a USB 3.0 docking station), but also up to three monitors with 4K resolution, or one with 4K resolution, plus one with 5K. Five USB 3.0 ports and one USB-C port allow you to connect all of your existing favourite accessories. This docking station means you avoid having to constantly connect and disconnect devices every time you travel with your notebook or tablet. In addition, connection via a single cable helps to keep your desktop clean, tidy, and free from cables. A USB-C to USB- C, as well as a USB-C to USB 3.0 adapter are included in the box Drivers are installed automatically from Win 10, while other operating systems require a simple installation (in a multi-laptop environment running Windows 7, 8, or 8.1, a one-time corporate installation is possible).

Whether you work with demanding 2D/3D graphics applications, presentations, work professionally in a web-based environment, or watch videos or movies in the highest possible resolution, this docking station allows you to enjoy faultless resolutions up to 2x 4K 4096×2160@60Hz (2x DisplayPort) and 1x 4K 3840×2160@30Hz (HDMI), or 1x 5K 5120×2880@60Hz (2x DisplayPort) and 1x 4K 3840×2160@30Hz (HDMI). The huge advantage of this advanced docking station is that thanks to the top performing integrated graphics chip, regardless of whether your notebook supports 5K technology (or the integrated graphics card is not designed for high resolution), your functionality will be comparable to much more expensive workstations, with advanced graphics cards. Note: The HDMI port only works when connected via USB-C (docking station connectivity through USB 3.0 ensures the operation of two DisplayPorts, the HDMI port does not).

The docking station also offers audio input/output, a gigabit network card, five USB 3.0 ports (incl. one with Fast Charge BC 1.2 support), one USB-C data port and ON / OFF switch.

Please make sure to check a compatibility of your device, whether it meets all the requirements for an operation of the specific i-tec product, especially video output (Display Port Alt mode), and/or Power Delivery. If your device would not be fully compatible, your new i-tec product may not operate correctly.

• 1x USB-C port for connecting to a laptop with USB-C or USB-A interface (USB-C to USB-C cable and USB-C to USB 3.0 adapter included)
• Graphic Interface: 2x Display Port and 1x HDMI (HDMI port available when USB-C with DisplayPort Alt Mode is connected).
• Resolution:
  – 1 monitor connected via 2 DP cables: 1x DP + 1x DP supports up to 5K 5120×2880@60Hz (graphics card on your computer may not support 5K resolution), and also 1 monitor connected via HDMI with support up to 1x 4K 3840×2160@30Hz (HDMI port available when USB-C is connected)
  – 2 monitors connected via DisplayPort support up to 4K 4096×2160@60Hz and 1 monitor connected via HDMI supporting up to 4K 3840×2160@30Hz (HDMI port available when USB-C is connected)
• 5x USB-A 3.0 port for connecting your existing USB 3.1/3.0/2.0 devices and high-speed data transfer (5 Gbps), USB Hot Swapping support, including 1x USB 3.0 with fast charging support (BC 1.2)
• 1x USB-C 3.1 gen. 1 data port for connecting your USB-C devices and high-speed data transfer (5 Gbps), USB Hot Swapping support
• 1x Ethernet GLAN RJ-45 port for high-speed network and Internet access over Gigabit Ethernet, 10/100/1000 Mbps speed support
• Chipset: DisplayLink DL6950, VIA VL813, Texas Instruments TPS65950
• Separate microphone input and headphone output, 1x 3.5 mm Audio out 5.1, 1x 3.5 mm Mic in
• ON/OFF switch – for switching the docking station switching on/off
• LED indication
• 1 power input for charging – external power adapter (output: 20V/6.75A)
• OS: Windows 7/8/8.1/10, Mac OS X, Linux Ubuntu 14.04, 16.04, 17.10, Android 6 and higher. Windows 10 – automatic installation of drivers from OS. Other operating systems – manual installation of drivers (with the option of corporate installation in Windows 7/8/ 8.1). Firmware updates automatically.
• Product dimensions: 245 x 95 x 30mm
• Product weight: 330 g
• Packaging dimensions: 296 x 147 x 90mm
• Packaging weight: 1380 g

SYSTEM REQUIREMENTS

Hardware requirements: Laptop with a free USB-A or USB-C port

Operating system: Windows 7/8/8.1/10, Mac OS X, Linux Ubuntu 14.04, 16.04, 17.10, Android 6 and later. Windows 10 – automatic installation of drivers from OS. Other OS – manual installation of drivers is required. Automatic firmware upgrade.

Recommended usage scenarios on the following platforms:

Intel Core i3:

Office use (Word, PowerPoint, Excel type application); 1 external monitor for desktop or video with resolution up to 2k. Data transfer/recovery on e.g. external HDD is recommended on one of the USB ports. (2 external FullHD monitors and even 4K video on one monitor is possible, however significantly slower OS response and/or low FPS is possible)

Intel Core i5:

Extended office and home use (Word, PowerPoint, Excel and 2D application e.g. Photoshop); 2 external monitors for desktop and applications with resolution up to 4k. Recommended video: 1x 2K and 1x 4K. Data transfer/recovery on e.g. external HDD is recommended on two of the USB ports. (Video in 2x 4K may cause low FPS and/or slow down the OS and running application response).

Intel Core i7:

Universal use (all types of applications, incl. 3D e.g. CAD), video and desktop in 4K, all USB ports may be used for data transfer/backup/recovery.

PACKAGE CONTENTS

• i-tec USB-C/A Dual Docking Station
• USB 3.1 C to C cable (100 cm)
• USB 3.1 C to A cable (100 cm)
• Power adapter (DC cable 160 cm)
• Quick Start

SPECIFICATION

i-tec Part Number Product Description & EAN
CATRIPLE4KDOCKPD	USB-C / USB-A 5K/4K 60Hz Triple Display Docking Station EAN 8595611702365
CATRIPLE4KDOCKPDUK	USB-C / USB-A 5K/4K 60Hz Triple Display Docking Station EAN 8595611702372

Specifications

Hardware
Bus Type	USB-C / USB-A (for connecting to a laptop with USB-C or USB-A interface (USB-C connecting cables and USB-C adapter on USB 3.0 included)
Supported displays	3 (for USB-C connection) 2 (for USB-A connection)
Ports
HDMI (only for USB-C connection)	1x 4K resolution up to 3840×2160@30Hz
DisplayPort	2x 4K resolution up to 4096×2160@60Hz, (5K resolution 5120×2880@60Hz if 1 monitor is connected via 2 DP cables)
USB 3.0 Type A USB 3.1 Type C	4x USB 3.0 (5 Gbps), USB Hot Swapping support 1x USB 3.0 (5 Gbps) with fast charging support (BC 1.2) 1x USB-C 3.1 gen. 1 data port (5 Gbps), USB Hot Swapping support
RJ-45	1x Gigabit Ethernet, 10 / 100 / 1000 Mbps speeds support
USB-C 3.1	1 (for connecting docking station to host, for charging laptops with support for Power Delivery)
Audio	2x separate microphone input and headphone output, 1x 3.5 mm Audio out 5.1, 1x 3.5 mm Mic in
System Requirements
Hardware	Notebook/tablet with free USB-A or USB-C port
Operating system	Windows 7 / 8 / 8.1 / 10 32/64 bit, Mac OS X, Linux Ubuntu 14.04 / 16.04, Android 6 and higher. Windows 10 – automatic installation of drivers from OS. Other operating systems – manual installation of drivers (with the option of corporate installation in Windows 7, 8, 8.1). Firmware updates automatically.
Power
Input current	1.8A
Input voltage	100 – 240V AC
Output current	6.75A
Output voltage	20V DC
Notebook power supply	60 W
Power adapter	External power adapter (output: 20V/6.75A) EU 2-pin (UK 3-pin for UK version)
Physical Characteristics
Colour	Space Grey
Material	Plastic
Product Dimensions	245 x 95 x 30 mm
Product Weight (without packaging)	330 g
Product Weight (including packaging)	900 g
Packaging Dimensions	296 x 147 x 90 mm
After Sales Service
Warranty period	2 years
Technical support	Product life (product lifecycle)
Package contents
i-tec USB-A 3.0 / USB-C docking station
USB-C 3.1 cable for USB-C (100 cm)
USB 3.1 C to A cable (100 cm)
Power adapter (DC cable 160 cm)
Quick Start Manual
