Prekės aprašymas anglų kalba:

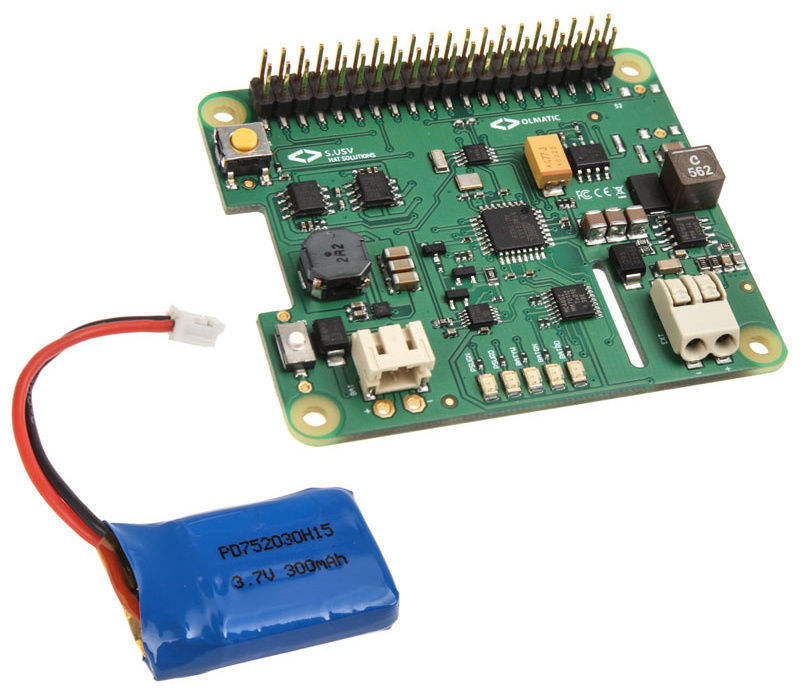

Behind the name S.USV hides a German brand that specializes in accessories for popular micro- computers . The main focus is placed on an uninterruptible power supply. The "S.USV UPs mobile" version offered here is an extended power supply module with integrated and adjustable charging function for all UP boards with GPIO connection, with the main focus on the uninterruptible power supply of the single-board computer.
With the mobile version, the UP boards can also be used in battery operation with the S.USV. Especially the integrated Real-Time-Clock, which also supplies the minicomputer with the correct time after a restart. In addition, a significantly faster battery charge time can be achieved, for example, by setting the charge current up to 1A instead of the standard 300 mA. Power supply via the GPIO interface As a fully functional plug-and-play solution, the S.USV UPs mobile is powered directly via the UP-board's 40-pin GPIO interface, using a common voltage source. As a result, no further wiring or power supplies are necessary. To safely shut down the UP board in the event of a malfunction and prevent data loss, the module is equipped with a long-lasting LiPo battery that covers the required voltage range via a boost switching power converter
If, for example, the power supply of the mini-computer falls below an adjustable voltage threshold, the S.USV UPs mobile automatically switches to battery mode and keeps the functionality of the UP board constant for a user-settable period, thereby bypassing or shutting down the power failure Safely shutdown one-board computer in the event of a long-term supply outage. With additional batteries, the duration of the power supply can be extended with the S.USV.
The UP board's uninterruptible power supply is guaranteed by a fully integrated monitoring system with a wide range of operating options. All possible operating states of the UP board are monitored internally, so that the module is always capable of responding to misconduct. All operating states or switching operations can be checked and controlled via a software including smartphone app or tablet.
This UPS variant also provides a mains input for the extended voltage range of 7-24 volts.
Technical details:
Behind the name S.USV hides a German brand that specializes in accessories for popular micro- computers . The main focus is placed on an uninterruptible power supply. The "S.USV UPs mobile" version offered here is an extended power supply module with integrated and adjustable charging function for all UP boards with GPIO connection, with the main focus on the uninterruptible power supply of the single-board computer.
With the mobile version, the UP boards can also be used in battery operation with the S.USV. Especially the integrated Real-Time-Clock, which also supplies the minicomputer with the correct time after a restart. In addition, a significantly faster battery charge time can be achieved, for example, by setting the charge current up to 1A instead of the standard 300 mA. Power supply via the GPIO interface As a fully functional plug-and-play solution, the S.USV UPs mobile is powered directly via the UP-board's 40-pin GPIO interface, using a common voltage source. As a result, no further wiring or power supplies are necessary. To safely shut down the UP board in the event of a malfunction and prevent data loss, the module is equipped with a long-lasting LiPo battery that covers the required voltage range via a boost switching power converter
If, for example, the power supply of the mini-computer falls below an adjustable voltage threshold, the S.USV UPs mobile automatically switches to battery mode and keeps the functionality of the UP board constant for a user-settable period, thereby bypassing or shutting down the power failure Safely shutdown one-board computer in the event of a long-term supply outage. With additional batteries, the duration of the power supply can be extended with the S.USV.
The UP board's uninterruptible power supply is guaranteed by a fully integrated monitoring system with a wide range of operating options. All possible operating states of the UP board are monitored internally, so that the module is always capable of responding to misconduct. All operating states or switching operations can be checked and controlled via a software including smartphone app or tablet.
This UPS variant also provides a mains input for the extended voltage range of 7-24 volts.
Technical details:
- Dimensions: 65 x 56.5 mm (W x D)
- Uninterruptible power supply: 5 Volt / 2,500 mA
- Extended voltage range: 7-24 volts / 3,500 mA
- Secondary output 5 volts / 3,500 mA
- Interface: GPIO 40-pin
- Compatibility: UP boards with GPIO interface
- Special Features:
Extended Voltage
Range ID EEPROM
Monitoring System
Mobile Application
Durable LiPo Battery
Battery Management
Battery Monitoring
Real Time Clock
