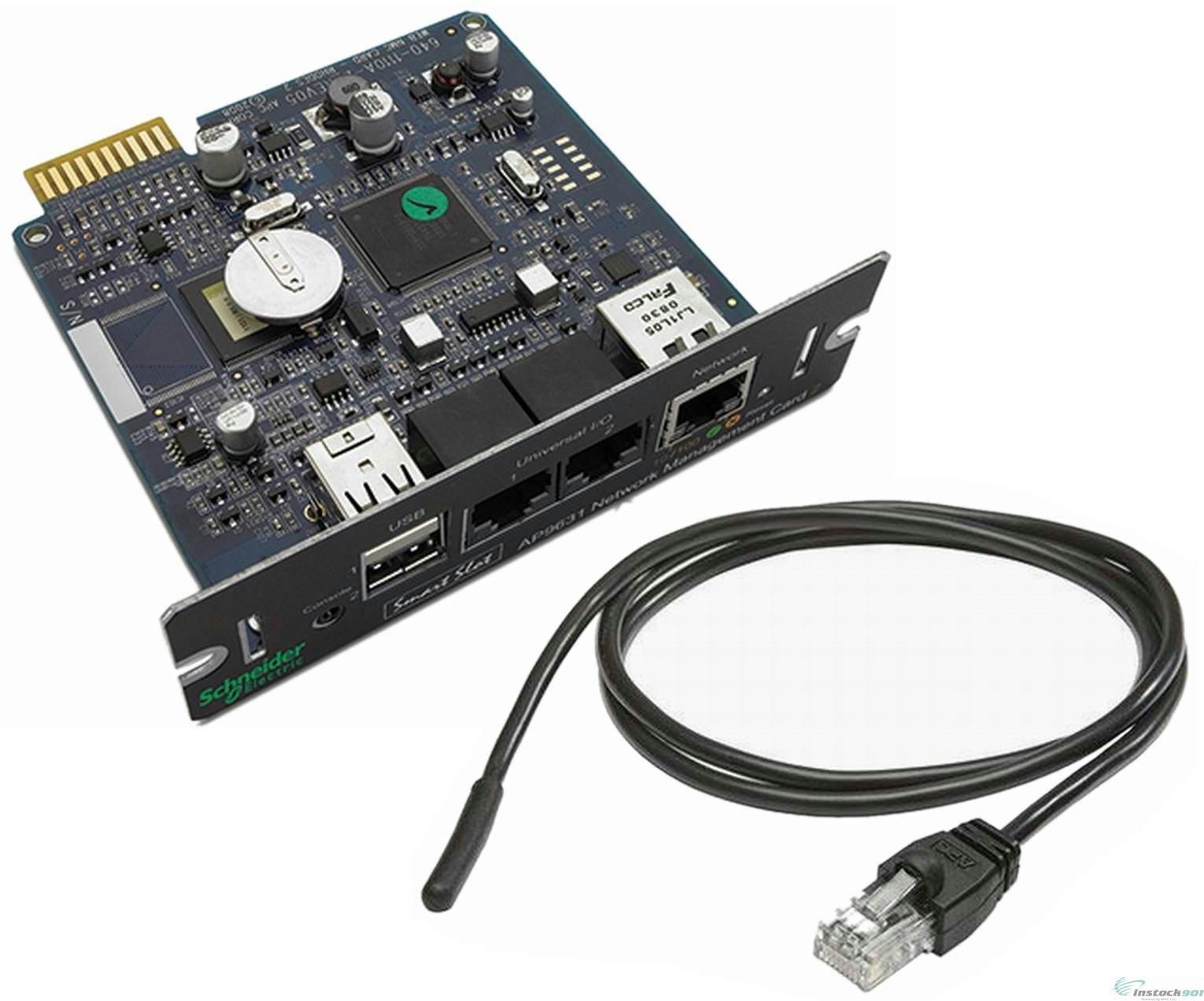

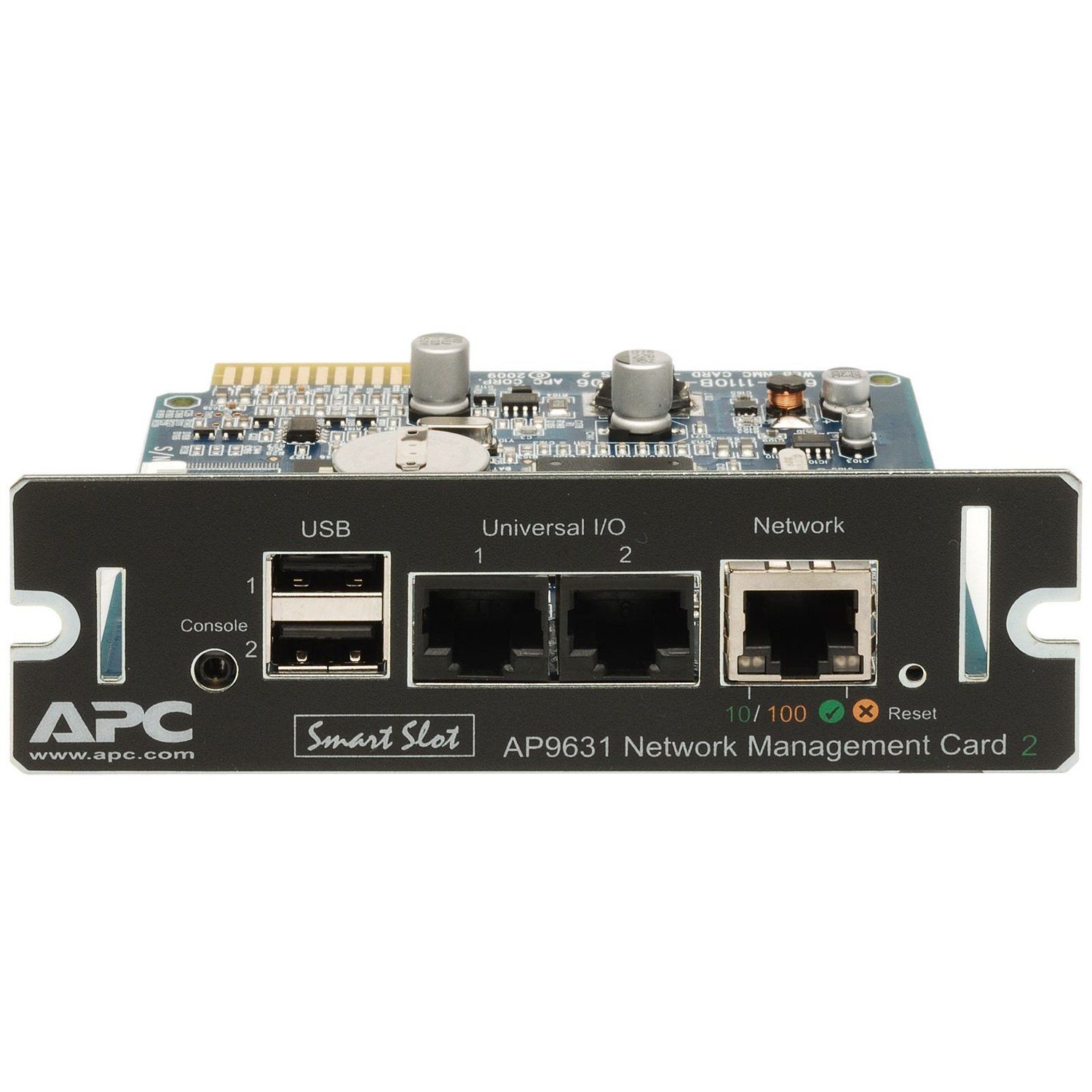

Išplėtimo plokštė APC UPS Network Management Card AP9631

UPS Network Management Card 2 with Environmental Monitoring

• Command line interface
  Offers simultaneous remote management access through Telnet and SSH
• Compatible with SmartSlot enabled UPSs
  Compatible with all SmartSlot UPSs
• Device Encryption
  Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
• Expandable Input and Output Ports
  Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
• IPv6 Support
  Capable of operating on a network using IPv6 protocol
• Modbus TCP Support
  Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
• Multiple language support
  Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
• Multiple user access
  Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
• Smart Battery Management Support
  Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
• Standard UPS RFC 1628 MIB Compatible
  Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
• UPS Firmware Update
  User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

• Remote device management
  Enable management of your UPS by connecting it directly to the network.
• Fault notification
  Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
• Browser Accessible
  View the user interface with a browser. Provides quick access from anywhere on a secure network.
• Enterprise management system compatible
  Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1, SNMPv2 and SNMPv3 using the PowerNet MIB
• Reboot equipment remotely
  Saves dispatching technicians to remote locations.

• Browser accessible
  View the user interface with a browser. Provides quick access from anywhere on a secure network.
• Flash upgradeable firmware
  Install maintenance releases of firmware remotely using FTP.

• Enterprise management system compatible
  Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1, SNMPv2 and SNMPv3 using the PowerNet MIB
• Notification
  Be notified of problems to ensure crucial situations are dealt with in a timely manner.
• Event logging
  Pinpoint the timing and sequence of events leading up to an incident with the event log.
• Integrates with StruxureWare Data Center Expert
  An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
• Scheduling
  Customize shut down and reboot of connected equipment and UPSs.
• Data logging
  Identify problematic trends before they escalate or export the data log for analysis.

• PowerChute Network Shutdown
  Reliable network-based shutdown of multiple servers
• Password security
  User-selectable password protection prevents unauthorized access, authorized against LDAP and Active Directory servers.
• Multi-tier user access
  Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.
• Radius support
  Use an existing radius server to securely authenticate, authorize, and account for your APC device.

• Reboot equipment remotely
  Saves dispatching technicians to remote locations.
