Name: Išplėtimo kortelė Delock
Brand: Delock
Price: 50.9 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas
Išplėtimo kortelės

Prekės ženklas
Delock
Jungtys
M.2
Garantija
24 mėn
Papildoma informacija
2 x 67 pin M.2 key B slot. 1 x 67 pin M.2 key M slot

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Prekės aprašymas anglų kalba:

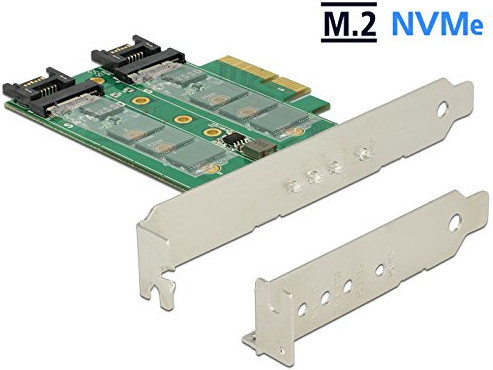

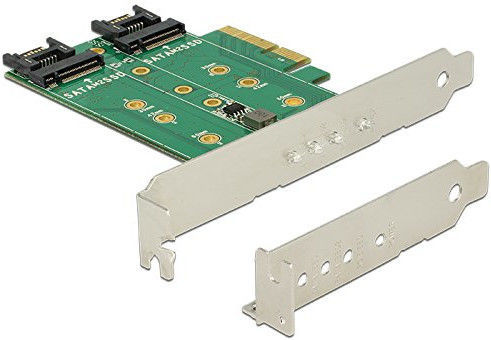

This PCI Express card by Delock expands the PC by three M.2 slots. On the card can be connected up to two M.2 SATA modules in format 2280, 2260, 2242, 2230 and one M.2 PCIe module in format 2280, 2260, 2242, 2230. The SATA modules will be connected via SATA cables to the motherboard.

Special features

• Supports modules with SATA and PCIe interface

Specification

• Connectors:
internal:
2 x 67 pin M.2 key B slot
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V3.0
2 x SATA 7 pin plug
• Interface: SATA + PCIe
• Supports
two M.2 modules in format: 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA and
one M.2 module in format: 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator
• Power supply via PCI Express

System requirements

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.3
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• One free SATA 7 pin interface for each connected M.2 module based on SATA

Package content

• PCI Express card
• Low profile bracket
• 3 x fixing screw
• User manual

Package

• Retail Box
