Išplėtimo kortelė Delock

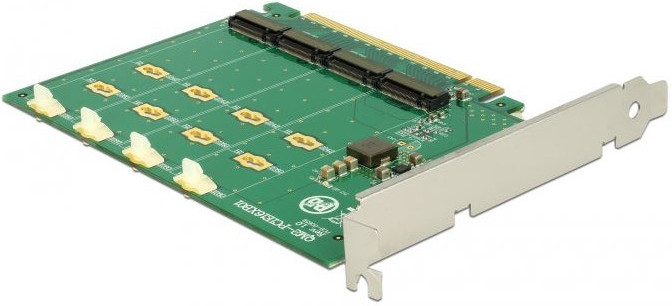

This PCI Express card by Delock expands a PC by four M.2 slots. M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple slots with M.2 SSDs.

Without PCIe bifurcation just the first M.2 slot of the card can be used.

• IOI part number: QM2-PCIE16XB01
• Connectors:
internal:
4 x 67 pin M.2 key M slot
1 x PCI Express x16, V3.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.17 / Kernel 4.10
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support

• PCI Express card

• Box
