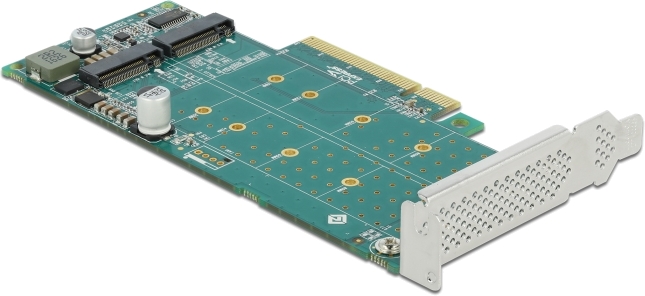

Išplėtimo kortelė Delock PCI Express x8 Card to 2 x internal NVMe M.2 Key M

This PCI Express card by Delock expands the PC by two M.2 slots. M.2 SSDs in format 22110, 2280, 2260, 2242 and 2230 can be connected. The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple slots with M.2 SSDs.

Without PCIe bifurcation only the first M.2 slot of the card can be used.

• Connectors:
internal:
2 x 67 pin M.2 key M slot
1 x PCI Express x8, V4.0
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key
B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C

• Linux Kernel 4.6.4 or above
• Windows Server 2016
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x8 / x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support

• PCI Express card
• Low profile bracket
• Mounting material
• User manual

• Box
