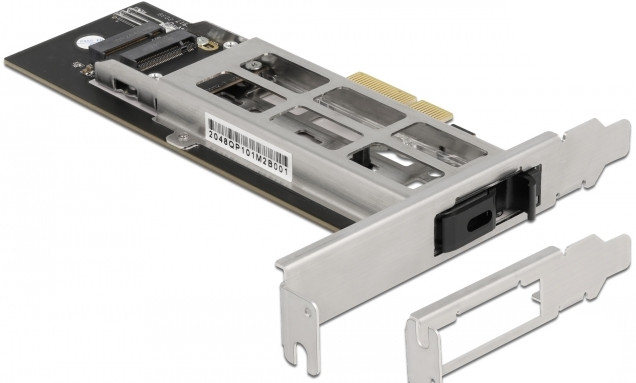

Delock Mobile Rack PCI Express Card for 1 x M.2 NMVe SSD - Low Profile Form Factor
This mobile rack by Delock can be installed into a free PC slot of the computer and provides an M.2 slot in 2280, 2260, 2242 or 2230 format.
Quick change of SSD
Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.
Metal tray with springs
The stable carrier of metal has springs on the top and bottom which reduce vibrations.
Note
Care must be taken that the tray is fully inserted, otherwise no connection to the SSD can be established.
Specification
• Connectors:
PCIe card:
1 x PCI Express x4, V3.0
1 x 67 pin M.2 key M slot
M.2 tray:
1 x 67 pin M.2 Key M male
1 x 67 pin M.2 key M slot
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• 1 x LED indicator
• Bootable, ex UEFI version 2.3.1
• M.2 tray made of metal
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Operating temperature: -40 °C ~ 85 °C
System requirements
• Linux Kernel 5.4 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• Mobile Rack
• M.2 tray
• Low profile bracket
• Heat sink
• 1 x thermal conductive pad
• Screws
• User manual
