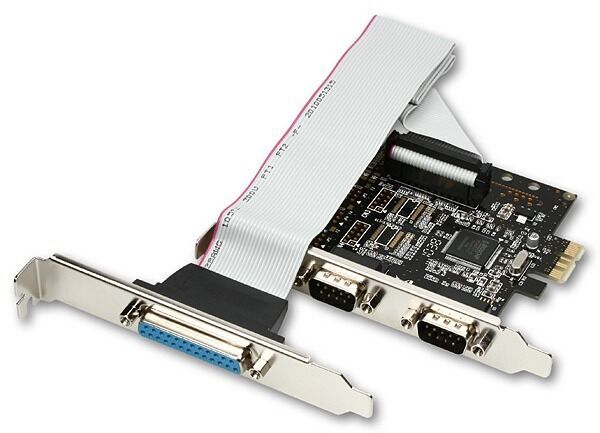

The AXAGON PCEA-SP PCI-Express card extends your desktop PC by two RS-232 standard serial ports with DB-9 connectors and one parallel port with a DB25 connector.Seamless compatibility and wide porting options are ensured by using the proven MOSChip chipset.Input: • PCI-Express 1.1 interface compatible with PCI-Express 1.0a / 2.0 / 2.1 / 3.0.• Number of 1-Lane (x1) lines compatible with x1 / x4 / x8 / x16 PCIe slots.• The bandwidth of 1-Lane PCI-Express 1.1 bus 2.5 Gb/s.Output serial ports:• 2x serial RS-232 port with DB9 male connectors, both ports are placed on the card’s blanking plug.• Maximum transmission rate of used RS232 drivers up to 250 kBd.• Compatible with 16C550 / Extended 16C550 / 16C950 UART.Output parallel port:• 1x parallel IEEE 1284 port with a DB25 female connector, the port is located on an independent blanking plug and connected with the card via cable.• Transmission rate up to 1.5 MB/s.• SPP/EPP/ECP/Nibble/Byte compatible.Other features:• Plug and Play Support - automatic selection of IRQ and I/O address.• Re-Map IO Address Support - COM and LPT port address setting (this feature is supported only in DOS).• 256-Byte transmit & receive FIFO buffer for each port.• Adjustable flow control Xon/Xoff, hardware or none.• Adjustable word length 4, 5, 6, 7 or 8 bits.• Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.• Supports TXD, RXD, RTS, CTS, DTR, DCD, DSR, and RI serial signals.• 9-bit data transmission support.• Supports connecting parallel devices such as printers, plotters, hardware keys or EPROM programmers.• Supports connecting serial devices such as ATMs, cash registers, barcode readers, CNC machines, tablets, POSs or PDAs.• ASIX (formerly MOSChip) MCS9901CV-CC chipset is used.Supported operating systems:• MS Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32 and 64-bit Windows OS versions), Linux with kernel 2.6.11 and above, MS DOS 6.22.Package contains:• PCI-Express card with serial ports,• a blanking plug with parallel port,• CD with drivers,• printed installation guide in English, Czech, Slovak and Polish,• packed in a cardboard box.
