Edukacinis žaislas Ksix BXBC02, įvairių spalvų

Build & Code Plus is an electronic kit for enthusiasts in robotics and domotics fields. It features an extensive selection of electronic components which allows you to develop basic and advanced projects.

You can build and program many simple and complex ideas. For example: a LED switch, a distance meter, a black-white color detector, a motor con¬trolled by a light sensor, etc.

Build & Code Plus is compatible with Arduino platform. For this reason, any project developed for the Arduino platform is compatible with Build & Code Plus and vice versa. You can download any Arduino project and use it on the Build & Code Plus, you can also access the Arduino forums and communities to get help and solve any issues.

It is also compatible with mBlock visual software, which features a friendly and simple interface that is very convenient for beginners in programming.

This product is designed for anyone who is interested in electronics and programming.

Basic description of the Build&Code UNO board

Build&Code Uno is a programmable board based on Arduino technology, it has the same ATmega328P microcontroller as Arduino UNO. The board power input can be via USB Type A-USB Type B cable (the standard printer USB cable) or via battery. The recommended power input range is 7-12V. It has a built-in LED which allows you to have visual communication with the board.

Because the Build & Code Kit is based on Arduino technology it also open source, which means that its electronic schemes can be found for free on the Internet and its programming software is also free. There are many internet communities available where you can ask questions, download projects for free to replicate, modify or adapt them to your needs. You can also participate in projects with other users or even be an active member and help other people.

Build & Code Plus Kit is an extended version of the Build & Code basic kit. It includes new components: 2 light sensor shields, 1 distance sensor shield, 1 black-white sensor shield, 1 RGB LED shield and 2 motor shields. With this extended Build & Code Kit you can develop a variety of complex projects

You can check our Build & Code educational resources, this includes documents, basic concepts description, tutorials, simple projects to get started, etc. These are available at the next link: Build &, Code Tech Resources.

Technical Specifications
Build&Code UNO board (Microcontroller ATmega328P)
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limit): 6-20V
14 Digital I/O Pins (of which 6 provide PWM output)
6 PWM Digital I/O Pins
6 Analog Input Pins
DC Current per I/O Pin: 20 Ma
DC Current for 3.3V Pin: 50 Ma
Clock Speed: 16 MHz
Size: 68 x 53 mm
Weight: 25 g
Programmable with Arduino IDE and mBlock (Scratch 2.0)
Compatible with Mac, Windows and Linux
Build & Code documents and resources available at the next link: Build &, Code Tech Resources

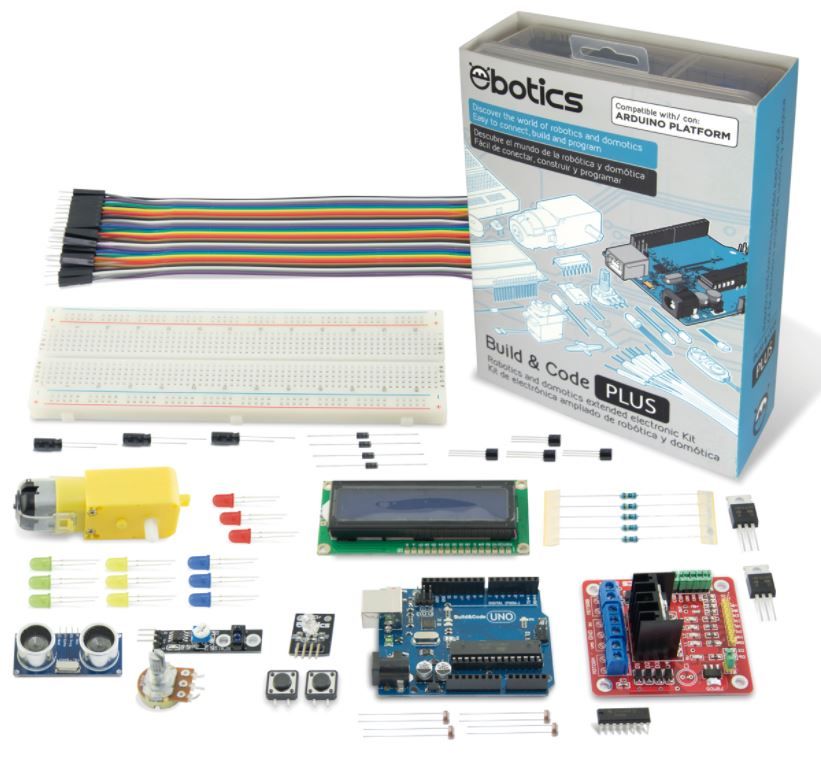

Components included

1 Build&Code UNO R3
1 Gyroscope sensor
1 Buzzer
1 Micro Servomotor
1 830 points breadboard solderless
1 DC motor
40 Wire 20cm 1p-1p Male-Male
1 L293D Motor chip
1 1602 LCD Module
6 Photo resistor
1 Analog temperature sensor
1 Battery 9 Volt snap
1 Platform for Build&Code UNO R3
5 Transistor BC547
2 Mosfet transistors IRF520
3 Potentiometer 10kilohm
10 Pushbuttons
1 RGB LED
1 LEDs White
8 LEDs Green
8 LEDs Red
8 LEDs Yellow
3 LEDs Blue
5 Diodes 1N4007
20 Resistors 220 ohm
5 Resistors 560 ohm
5 Resistors 1 kilohm
5 Resistors 4,7kilohm
20 Resistors 10 kilohm
5 Resistors 1 megohm
5 Resistors 10 megohm
5 Capacitors 100uF
5 Capacitors 100 nF
5 Capacitors 100 pF
2 Opto-coupler 4N35
1 USB Type A-USB Type B cable
1 L293D 2 Motors DC Control Shield
1 L298N Dual Bridge DC stepper Controller
1 Ultrasonic distance sensor
1 Black-White sensor (Line Trac¬king)
1 RGB LED Module
2 Light sensor shields
40 Wire 20cm 1p-1p Female – Male
