Blykstė Quadralite

Quadralite Move X is a small, compact and light – but above all – easy to use and reliable. This strobe offers every beginner an easy way to learn studio photography and it's basic techniques without high expenses. However Move X will be an efficient tool in hands of professionals. Thanks to compact housing it’s easy to carry around and hassle-free in storage. Integrated Navigator X wireless system make’s it even more useful both in studio or on-location.

Fast and accurate

Move X stands out for it’s wide power output adjustment range of 5 f-stops (1/1 – 1/32) adjustable in 1/10th-stop which is quite unique in this price range. Beside this high level of precision, Move X is also rather fast and can recycle in less than 1,7s even when maximum power output is used. It can also reach very short flash duration of 1/2000s @1/32 of power (t=0.1). Color temperature shift between each flash at given power output level should not be larger than ±200K.

Wireless control

Move X strobes are equipped with built-in Navigator X wireless system receiver. This feature allows full wireless control and triggering up to 100m. Move X can be controlled by other flashes (for example: Stroboss 60 or Stroboss 36 speedlites), or by Navigator X and X2 radio controllers up to cameras x-sync speed in manual mode (TTL is not supporter). Move X is also equipped with USB port where Navigator Kit receivers can be attached and flash can be used in the same setup with older Quantuum and Quadralite flashes. There is also sync port with 3,5mm Jack socket for third party triggers.

Easy to use

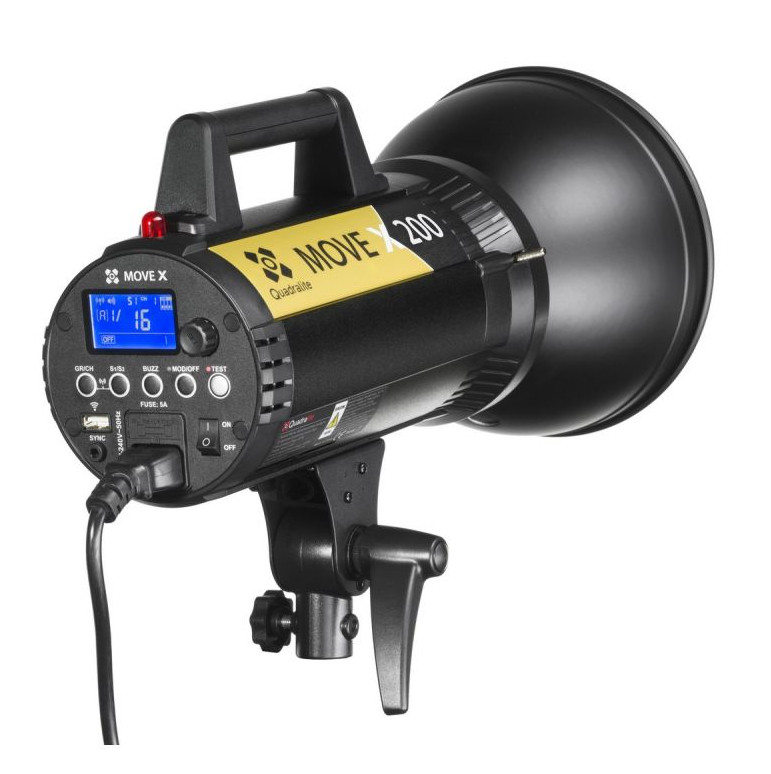

Rear panel is equipped with large backlite LCD screen featuring high visibility at almost any angle. All flash status information are presented there for user convenience even in bright ambient light. Flash power output can be adjusted by knob located on the right side of LCD. There is also a set of five buttons delivering easy access to all flash features and functions such as wireless modes, sound signal, etc. Modeling light can be used in manual mode or linked to adjusted flash power level.

Light and compact

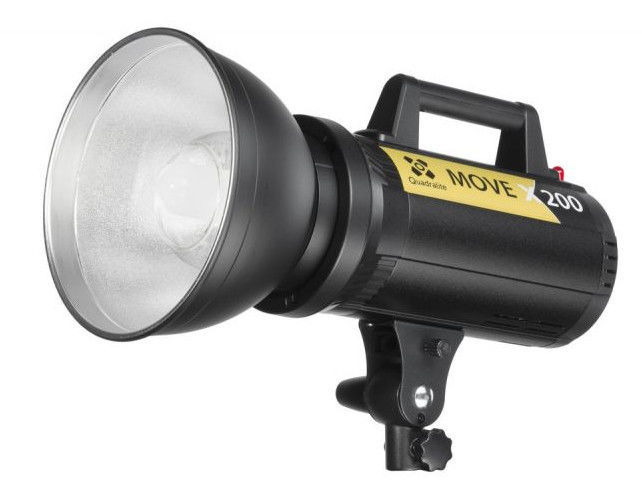

Quadralite Move X is exceptionally light (approx. 2kg depending on version) and packed into a small housing made of aluminum alloy. Stand bracket is also made of metal providing up/down shift adjustment and can hold quite large light modifiers (softboxes up to 120cm in diameter).

Versatile

Move X flash is equipped with Bowens S-mount and can be used with large variety of light modifiers supplied by Quadralite or other manufacturers. You can modify the light according to your needs thanks to a wide assortment of sofboxes, reflectors, beauty-dishes, snoots, umbrellas etc.

• Flexible and accurate flash power adjustment within the range of 5 f-stops (5EV) in 50 steps (1/1 – 1/32) every 0.1 EV
• Short flash duration of 1/2000s (t0.5, at 1/32 of power)
• Colour temperature consistency through the entire output range (5600K±200K)
• Short recycling times (1.5s at full power)
• Integrated Quadralite Navigator X receiver for wireless control and triggering1
• Optical slave triggering and standard sync socket (Jack 6.3mm) for flash synchronization
• Automatic power reduction while decreasing flash output
• 150W halogen modeling light can be used in a proportional or manual mode
• Active cooling (integrated fan)
• Compatible with the Bowens type mount light modifiers
• Light and compact housing

Model	Move X 200
Product type	Studio flash
Flash qualities
Max energy output	200Ws
Guide Number1 (@1/1, ISO100, 7' stndard reflector)	49m
Color Temperature	5600K±200K
Energy range	1/32 (6,2Ws) ~ 1/1 (200Ws)
Recycle time	~0,3 – 1,5s
Flash Modes	M
High Speed Sync	No
Flash Duration (t=0.1)	1/800s @1/1 1/2000s @1/32
Stroboscopic Flash (Multi)	No
Modeling light
Type	Halogen
Max power	150W
Color Temperature	approx. 3300K
Modes	manual/proportional/OFF
Wireless control and communication
Navigator X	Yes (built-in receiver)
Modes	Slave/OFF
Channels	32
Groups	16
Powering
Power source	AC220V–240V ~50Hz
Miscellaneous
Sync socket	Yes (3.5mm Jack)
Slave cell	Yes
Cooling	Active (fan+heat-sink)
Firmware upgrade	No
Ready indicator	Visual and sound signal
Display	Dot-matrix hi-contrast LCD
Operating temperature range	+10ºC ~ +40ºC
Dimensions
Diameter x Height x Width	11,4 x 21,9 x 34cm
Weight	2.0kg
