Atminties kortelių skaitytuvas Delock

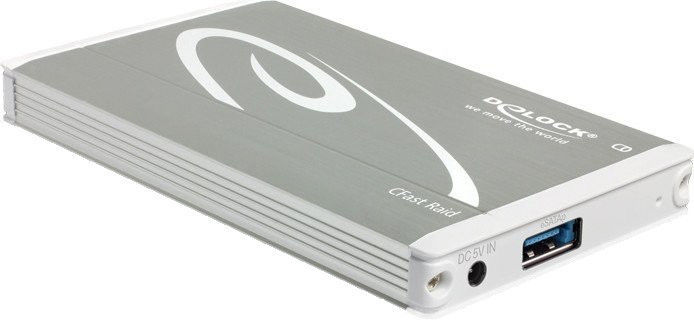

The aluminium enclosure by Delock enables the installation of two CFast memories, which can be connected via USB Type-C™ to the PC or laptop. When using more than one memory card, there is the possibility to use different RAID level.

The package contains the cable USB-C™ male to USB Type-A male. This can also be used only in this direction. Therefore the USB-C™ male must be connected to the computer and the USB Type-A male to the enclosure.
Optionally there is a cable from Delock USB Type-A male to USB Type-A male (83981), so that this enclosure can also be connected to a computer with USB Type-A interface. In addition, there is the possibility to connect a power supply if the power from the USB port is not enough.

• Connector:
external:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
1 x 5 V DC jack
internal:
2 x CFast 2.0 slot
• Chipset: Asmedia ASM1352R
• Supports CFast type I / II memory cards
• Downwards compatible to CFast 1.0
• Supports RAID 0, 1, SPAN, Port Multiplier
• RAID mode set by DIP switch on board
• Data transfer rate up to 10 Gbps
• Enclosure with full-PCB
• Colour: silver
• Dimensions (LxWxH): ca. 136 x 80 x 16 mm
• Hot Plug, Plug & Play

• 5 V, ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 8.5 mm
• Optional power supply: Navilock 41337

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port

• External enclosure
• Cable USB-C™ male to USB Type-A male, length ca. 50 cm
• Cover, screwdriver, screws
• User manual

• Retail Box
