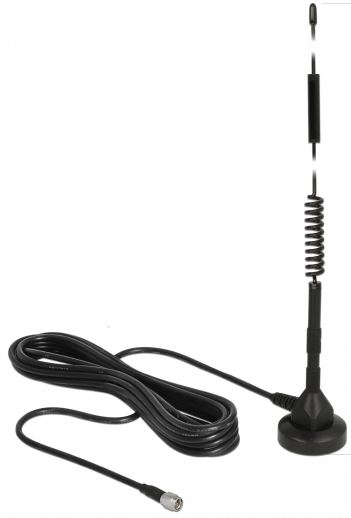

Antena Delock LTE Antenna 12427, 1710 - 2690 MHz

This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

• Connector: 1 x SMA plug
• Frequency range:
700 - 960 MHz
1710 - 2690 MHz
• GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz /
915 MHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Transmission power: 50 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable attenuation: 0.6 dB @ 1 GHz per meter
• Cable diameter: ca. 4.95 mm
• Cable length incl. connector: ca. 3 m
• Antenna length including magnetic base: ca. 33.7 cm
• Diameter magnetic base: ca. 40.0 mm
