Name: Antena Delock 89604 LTE SMA, 698 - 2690 MHz
Brand: Delock
Price: 17.79 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Antenos

Prekės ženklas

Delock

Modelis

89604 LTE SMA

Ilgis

20.5 cm

Dažnis

698 - 2690 MHz

Jungtys

SMA

Garantija

24 mėn

Papildoma informacija

Jungtis: SMA kištukas. Suderinamumas: GSM, UMTS, Bluetooth, WLAN 2.4GHz, ZigBee, DECT, Z-Wave ir LoRa. Antenos stiprinimas: 2dBi

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

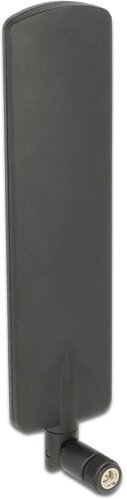

This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.

Specification

• Connector: 1 x SMA plug
• Frequency range:
698 - 960 MHz
1710 - 2690 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz /
915 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 4.5 (698 - 960 MHz) ; 3.5 (1710 - 2690 MHz)
• Polarisation: linear, vertical
• Operating temperature: -20 °C ~ 65 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 20.5 x 4.3 x 1.4 cm

System requirements

• Device with a free SMA jack

Package content

• Antenna

Package

• Retail Box
