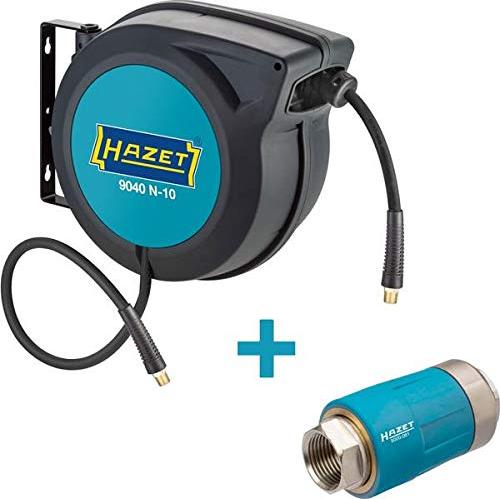

Aksesuaras dažymui Hazet 9040N/2 9040N-10, 20 Bar, 16.41 mm

Application:
Automatic hose reel offers tidiness in the workshop – hose not left lying around, thus reducing the risk of accidents

• Hose stop at any point with “Stop at any point” function
• Neat winding of the hose thanks to automatic guidance
• Braked winding to prevent risk of accidents
• Inside diameter of the hose: 10 mm
• Suitable for compressed air or water
• Dimensions (packed): 465 x 400 x 220 mm
• Hybrid polymer hose, black
• Length of connection hose: 0.9 m
• Integrated drill template for mounting on cardboard packaging
• Thread BSPT
• Meets all relevant requirements defined in the European Directives for Machinery 2006/42/EC
• Optionally usable with HAZET safety coupling 9000-061
• Closed special plastic case, supplied with rotating metal mounting bracket made for separate installation at the workplace
• Borehole spacing of the mounting bracket: 186 mm
• Air connection inlet: Outside thread 16.41 mm (3/8″)
• Air connection outlet: Outside thread 16.41 mm (3/8″)
• Temperature range: -40°C – 60°C
