Name: Adapteris Delock
Brand: Delock
Price: 74.63 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Adapteriai

Prekės ženklas

Delock

Papildoma informacija

Chipset Asmedia ASM1092R. 6 Gbp/s duomenų perdavimo sparta. RAID JBOD 0 1

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Prekės aprašymas anglų kalba:

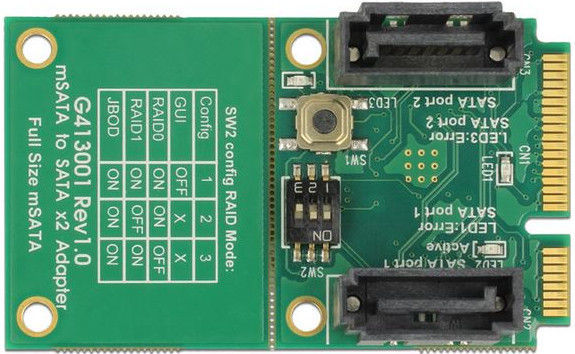

This converter by Delock expands the system by two SATA ports. When using more than one SATA port, there is the possibility to use different RAID modes. Through the predetermined breaking point, the length can be shortened from full size to half size.

Note

This product provides a chipset-based RAID function. Management and setting of the RAID mode is not possible via the operating system or BIOS. Different diagnostic software is not compatible with this solution.
The SMART function is not supported. JBOD is only supported on SATA controllers with port multiplier function.

Specification

• Connectors:
1 x 52 pin mSATA / Mini PCI Express male >
2 x SATA 6 Gb/s 7 pin plug
• Chipset: Asmedia ASM1092R
• Interface: SATA
• Form factor: full size / half size
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, 1, JBOD
• Supports HDD and SSD
• Bootable
• 1 x button for RAID setting
• 1 x DIP switch for RAID mode
• Dimensions (LxWxH): ca. 51 x 30 x 11 mm

System requirements

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.38 / Kernel 4.9.4
• A free mSATA interface

Package content

• Converter
• User manual

Package

• Retail Box
