Adapteris Delock

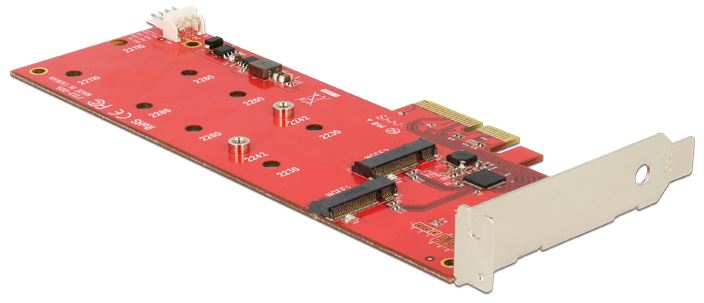

This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SATA modules can be connected in format 22110, 2280, 2260, 2242, 2230 with this card.

• Connectors:
internal:
2 x 67 pin M.2 key B slot
1 x PCI Express x4, V2.0
1 x 4 pin power connector
• Interface: SATA
• Supports M.2 modules in format: 22110, 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double-sided
assembled modules supported
• Power supply via PCI Express interface or via 4 pin power connector
• Data transfer rate up to 6 Gb/s
• Supports Native Command Queuing (NCQ)

• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.2.0
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

• PCI Express card
• Low profile bracket
• 2 x fixing screw
• User manual

• Box
