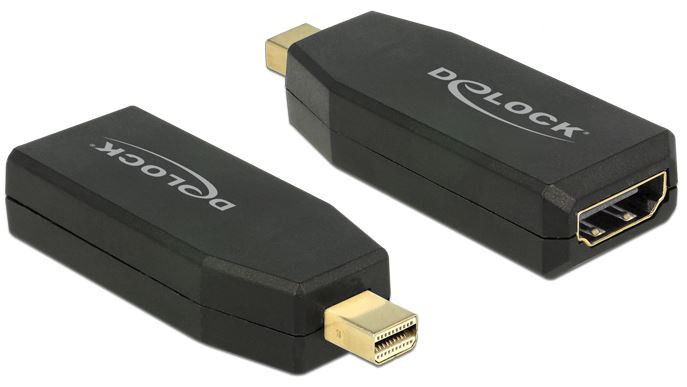

Adapteris Delock Displayport-mini 1.2 to HDMI Mini Display port male, HDMI female, juoda

Description

This adapter enables you to connect e.g. a HDMI monitor through a free mini Displayport interface. The adapter supports a resolution up to Ultra HD (4K) and is backward compatible to Full-HD 1080p. The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.

Specification

• Connector: mini Displayport 20 pin male > HDMI-A 19 pin female

• Chipset: Parade PS171

• Mini Displayport 1.2 and High Speed HDMI specification

• Active converter, for graphics cards with DP and DP++ output

• Resolution up to 3840 x 2160 @ 30 Hz (depending on the monitor and your system)

• Supports 3D displays (1080p @ 120 Hz)

• Supports HDCP 1.3

• Supports Eyefinity

• Audio input formats: 8-channel LPCM, compressed audio (AC-3, DTS) and

HBR audio format up to 24 Bit audio sample size and 192 kHz sample rate

• Gold-plated connector

• Dimensions incl. connector (LxWxH): ca. 61 x 22 x 12 mm

• Colour: black

• OS independent, no driver installation necessary

System requirements

• A free mini Displayport female port
